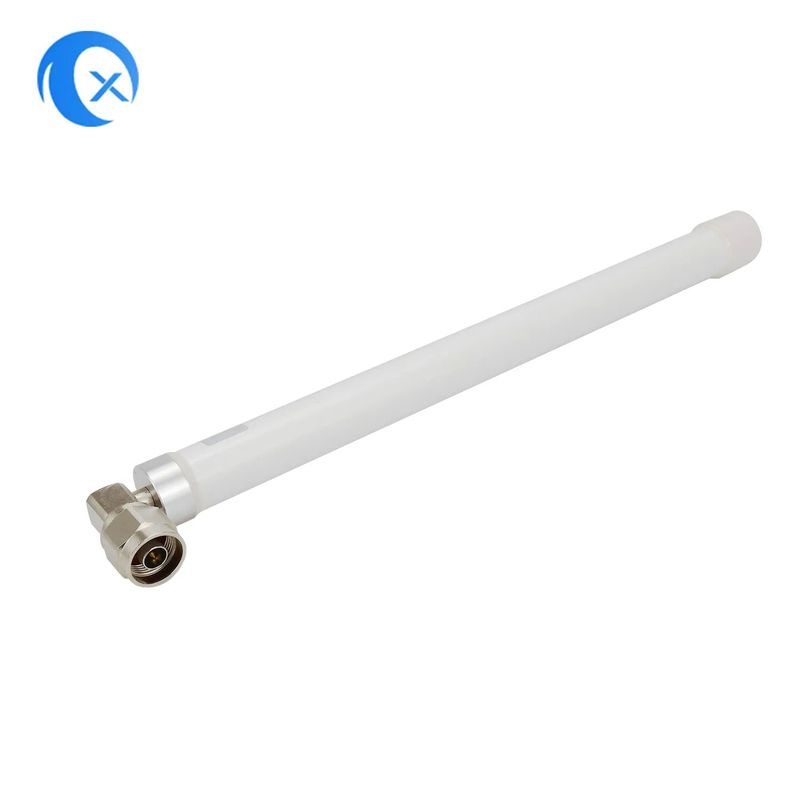

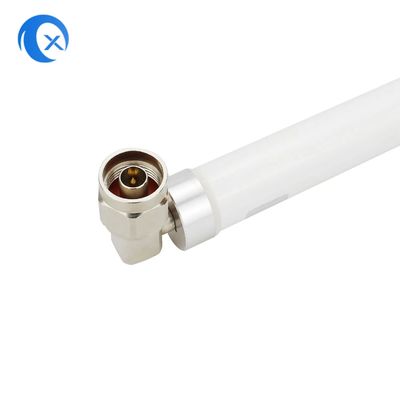

4G LTE Fiberglass Antenna 694-960/1710-2170MHz with N-Male Connector

4G LTE Fiberglass Antenna 694-960/1710-2170MHz with N-Male Connector
4G LTE Fiberglass Antenna 694-960/1710-2170MHz with N-Male Connector 4G LTE Fiberglass Antenna 694-960/1710-2170MHz with N-Male Connector 4G LTE Fiberglass Antenna 694-960/1710-2170MHz with N-Male Connector 4G LTE Fiberglass Antenna 694-960/1710-2170MHz with N-Male Connector 4G LTE Fiberglass Antenna 694-960/1710-2170MHz with N-Male Connector 4G LTE Fiberglass Antenna 694-960/1710-2170MHz with N-Male Connector

Ampliación de imagen :  4G LTE Fiberglass Antenna 694-960/1710-2170MHz with N-Male Connector

Datos del producto: Pago y Envío Términos:
Cantidad de orden mínima: 100
Precio: 1.5
Contacto

4G LTE Fiberglass Antenna 694-960/1710-2170MHz with N-Male Connector

descripción
Rango de frecuencia: 694-960/1710-2170MHz VSWR: 1.5~2
Dimensiones: 20*295 mm Peso neto: 122.7g
Material: Fibra de vidrio Ganancia de antena: 5.0 DBI
Polarización: Lineal Impedancia: 50 ohmios
Material del radiador: Tubo+látigo Material de plástico: ABS/POM
Tipo de conector: N Conector Temperatura de operación: -20˚C ~ +60˚C
Temperatura de almacenamiento: -40˚C ~ +80˚C Forma de estructura: Antenna de superficie
Frecuencia: 2,4 GHz
Resaltar:

4G LTE fiberglass antenna

,

Fiberglass base station antenna with N-Male connector

,

694-960MHz 1710-2170MHz LTE antenna

4G LTE Fiberglass Indoor/Outdoor Antenna with N-Male Connector
694-960/1710-2170MHz LTE, GSM and UMTS
4G LTE Fiberglass Antenna 694-960/1710-2170MHz with N-Male Connector 0 4G LTE Fiberglass Antenna 694-960/1710-2170MHz with N-Male Connector 1 4G LTE Fiberglass Antenna 694-960/1710-2170MHz with N-Male Connector 2 4G LTE Fiberglass Antenna 694-960/1710-2170MHz with N-Male Connector 3 4G LTE Fiberglass Antenna 694-960/1710-2170MHz with N-Male Connector 4
High-performance 4G LTE fiberglass antenna designed for both indoor and outdoor use, featuring an N-male connector. Optimized for LTE, GSM, and UMTS frequencies between 694-960MHz and 1710-2170MHz.
Technical Specifications
A. Electrical Characteristics
Frequency 2.4 GHz
V.S.W.R <= 2.0
Antenna Gain 5.0 dBi
Polarization Linear
Impedance 50 Ohm
B. Material & Mechanical Characteristics
Material of Radiator Tube+whip
Material of Plastic ABS/POM
Cable Type /
Connector Type N connector
C. Environmental
Operation Temperature -20˚C ~ +60˚C
Storage Temperature -40˚C ~ +80˚C
4G LTE Fiberglass Antenna 694-960/1710-2170MHz with N-Male Connector 5 4G LTE Fiberglass Antenna 694-960/1710-2170MHz with N-Male Connector 6 4G LTE Fiberglass Antenna 694-960/1710-2170MHz with N-Male Connector 7 4G LTE Fiberglass Antenna 694-960/1710-2170MHz with N-Male Connector 8 4G LTE Fiberglass Antenna 694-960/1710-2170MHz with N-Male Connector 9 4G LTE Fiberglass Antenna 694-960/1710-2170MHz with N-Male Connector 10 4G LTE Fiberglass Antenna 694-960/1710-2170MHz with N-Male Connector 11
About Teng Xiang Electronics

Teng Xiang Electronics is an experienced manufacturer of RF products specializing in antennas, RF coaxial cable assemblies, and RF connectors. We deliver innovative technologies and solutions for the rapidly evolving wireless industry, including:

  • 5G, 4G (LTE), 3G, and 2G solutions
  • WiFi, ISM, and IoT applications
  • Iridium communications
  • GPS/GLONASS/BeiDou frequencies

We serve telecommunications, security, automotive, medical, and IoT markets with customized solutions. Our in-house design, R&D, and manufacturing capabilities ensure high-quality products tailored to customer requirements.

Why Choose Our Products?
  • Extensive product range: Hundreds of antenna options for communication, IoT devices, security cameras, smart home/city, automotive, medical, and drone applications
  • Custom solutions: Tailored designs for antennas, coaxial cables, and plastic parts with in-house design, R&D, testing, and manufacturing
  • Production capacity: Over 200 employees and automated assembly lines ensuring reliable manufacturing capabilities
  • Quality commitment: High-quality products at competitive prices with excellent customer service
